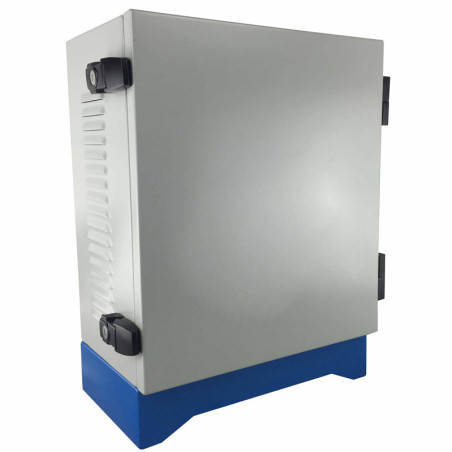

HIGH POWER WATERPROOF PRISON JAMMER 8 BANDS / Effective Range:100 - 300 meters WATERPROOF PRISON JAMMER

This HIGH POWER WATERPROOF 8 BANDS PRISON JAMMER SYSTEM suit for ourdoor install with waterproof function, this High Power Jamming system is great for Prison, Oil and Gas Storage Facilities and fields, Security Services, Military Units, Secret Services, Museums, Border Patrol and Drug Enforcement, Customs, etc.

THIS MODEL IS FOR CUSTOM ORDER ONLY, PLEASE CONTACT US IF INTERESTED.

Features:
Each unit can jam up to five frequency bands simultaneously
For the cellular phone jamming, only making the interference to the downlink bands,never to the uplink and make sure BTS normal running
Special Waterproof and solid housing for all weather protection
Continuous operation, even in hot climates, with no time limit
Heat sink designing combing with the fans to make system in a cooling status
Specially designed shockproof,Waterproof and RF shielded internal metal enclosure
Smart active cooling system enables unlimited continuous operation in very hot temperatures with fans design
Extensive choice of external high gain (directional/ omni directional antennae type for different channels
Module design based on high power RF amplifiers with VSWR and temperature self-protection technology
Turn-key design makes it more user-friendly
Heat sink design make the jamming system work more stable
UPS and battery backup in case of mains power failure
It support make 4 bands, 5 bands, 6 bands, 8 bands frequencies

Specifications:
All Frequency, Up to 8 Bands for choice:
Cellphone Standards:
CDMA450(460-470MHz)
CDMA450(460-470MHz)
CDMA800/GSM850(851-894MHz)
iDEN(869-894MHz)
GSM900(925-960MHz)
DCS/GSM1800(1805-1880MHz)
PCS/GSM1900(1930-1990MHz)
3G/WCDMA/CDMA2000(2110-2170MHz)
4G/LTE700(American: 725MHz-785MHz)
4G/LTE800(Europe: 790MHz-862MHz)
4G-LTE2.3GH(2300MHz-2410MHz)z
4G/LTE2.6GHz(2620MHz-2680MHz)
Computer Communication Standards: Wlan, 2.4GHz, WiFi, Bluetooth
Satellite Communication Systems: GlobalStar, GPS,Thuraya (1520-1580MHz)

Bands: 4 ~ 8 bands for choice
Output Power: 25Watt ~ 100 Watt/band for choice
Total Power: Max: 300~800Watt
Power Consumption: Max:1800~2500VA
Power Supply voltage: 230VAC/110VAC, 24-27VDC
Housing: Metal Enclosure
Power supply: AC220V
Shielding area: 300-500M according to signal density of mobile network
Weight:35Kg
Size（length × wind × high）:390×390×240mm
Humidity: 5%-80%
Operational Temperature: -40 °C ~ +65 °C
Cooling System: Active smart with integrated incoming air filter
With waterproof case
Waterproof level: IP55
